Precision extrusion dies engineered for solar mounting systems, battery structures, EV components, and renewable energy aluminum profiles.
Solving Key Challenges in Industrial Profile Extrusion
| Alloy | Applications |
| 6063 | Solar Frames |
| 6061 | Structural Components |

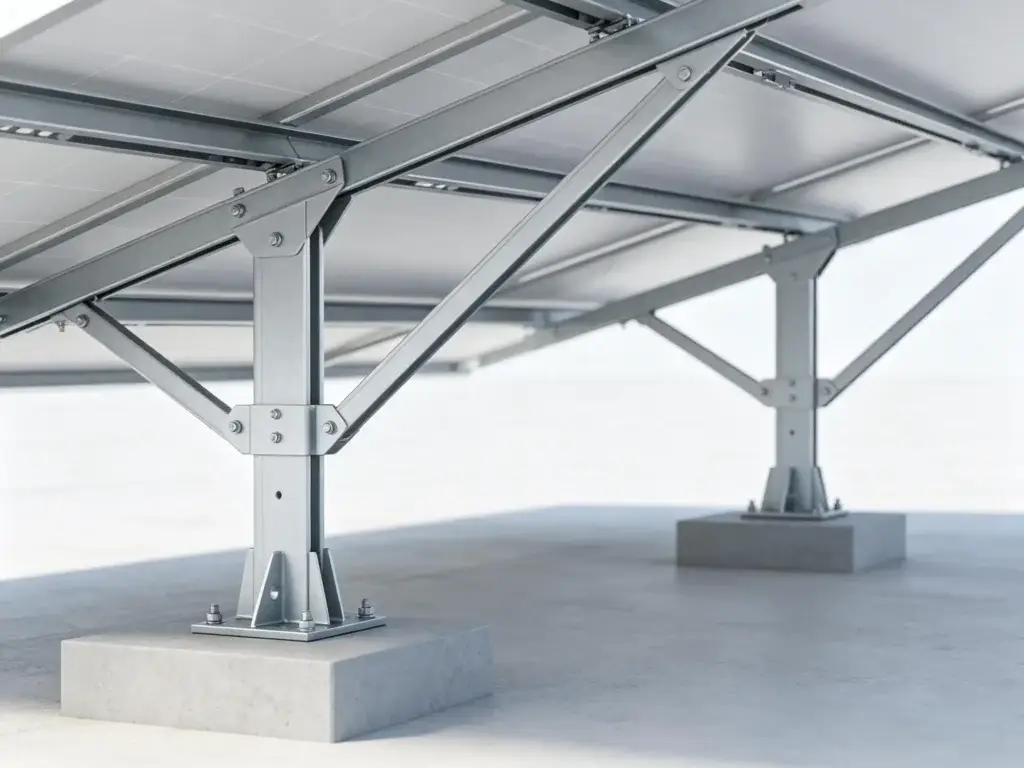

| 6005A | Solar Mounting Systems |
| 6082 | Heavy Structural Profiles |
| 6060 | Decorative Profiles |

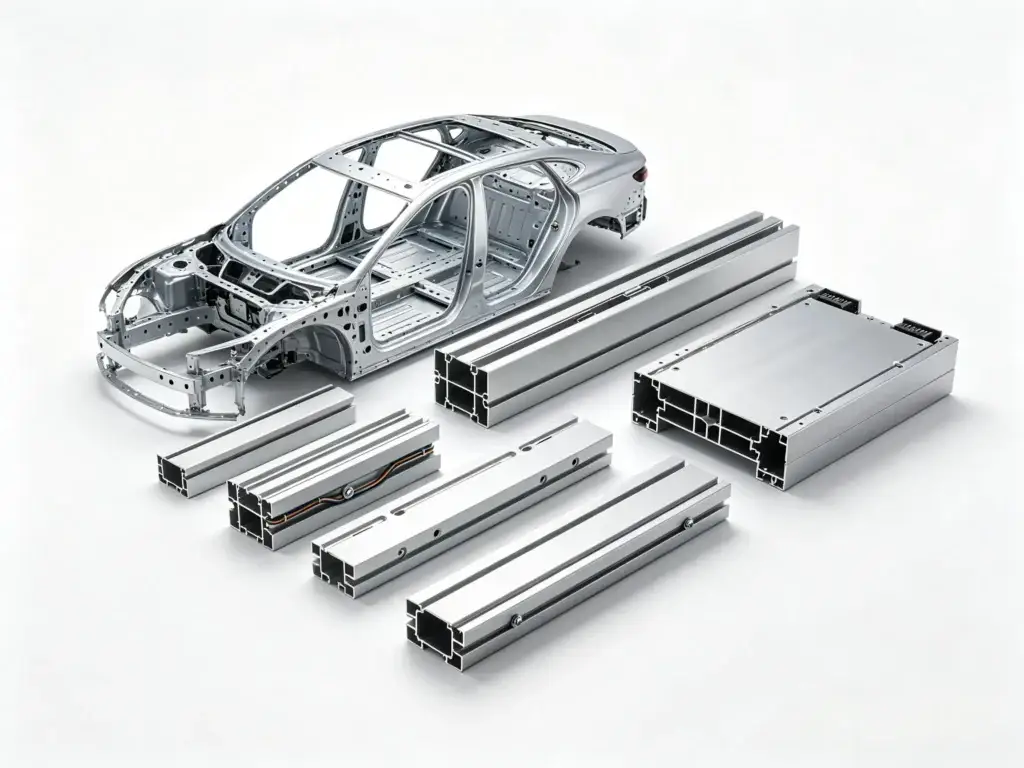

| 7005 | High-strength Transportation Components |
Explore answers to the most common questions about our precision aluminum extrusion dies. Get the technical information you need to support your industrial extrusion proje

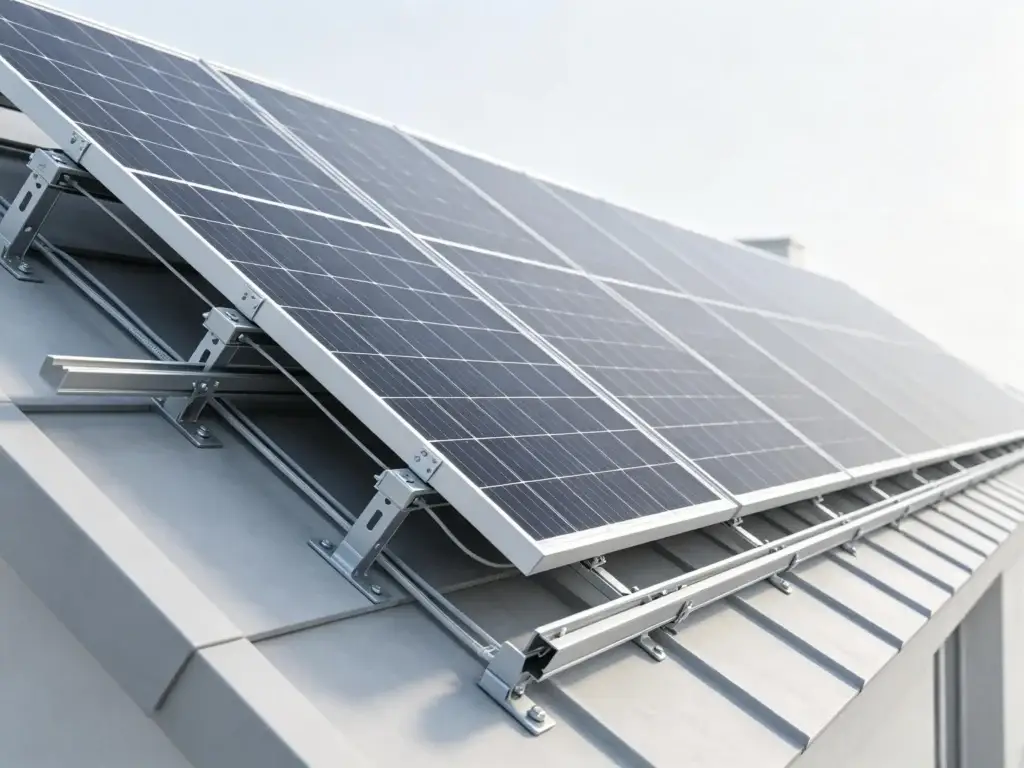

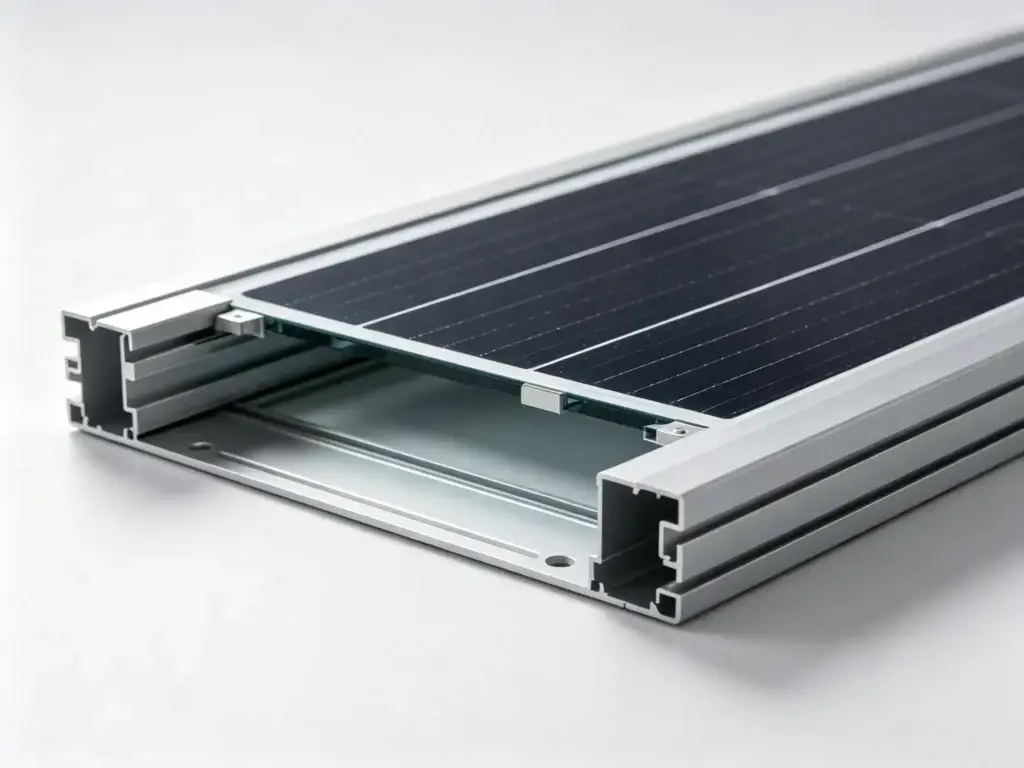

6063 aluminum alloy is the most commonly used material for solar panel frames due to its excellent corrosion resistance, surface finish, and extrusion performance. For higher structural strength, 6005A and 6061 alloys are also widely used.

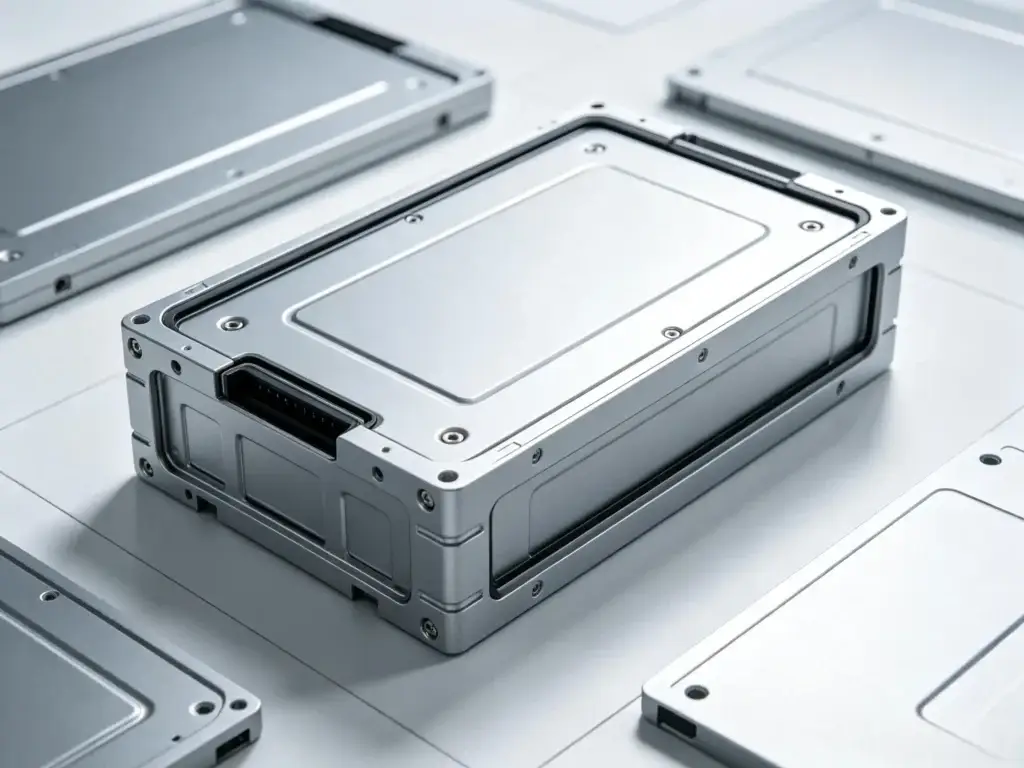

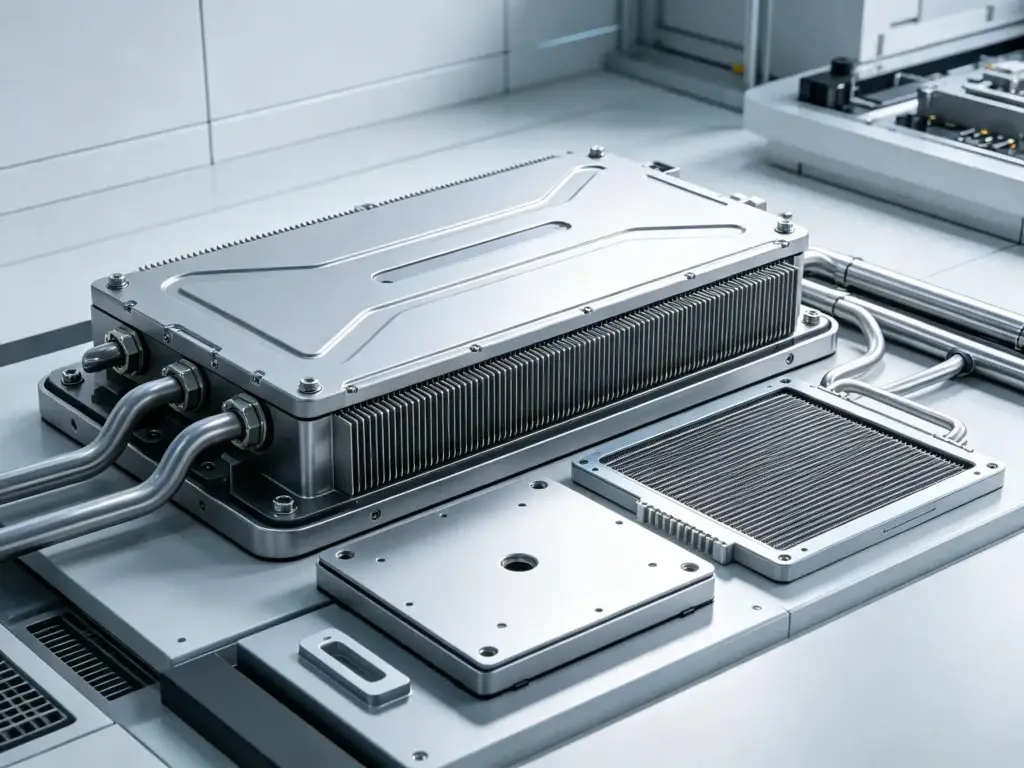

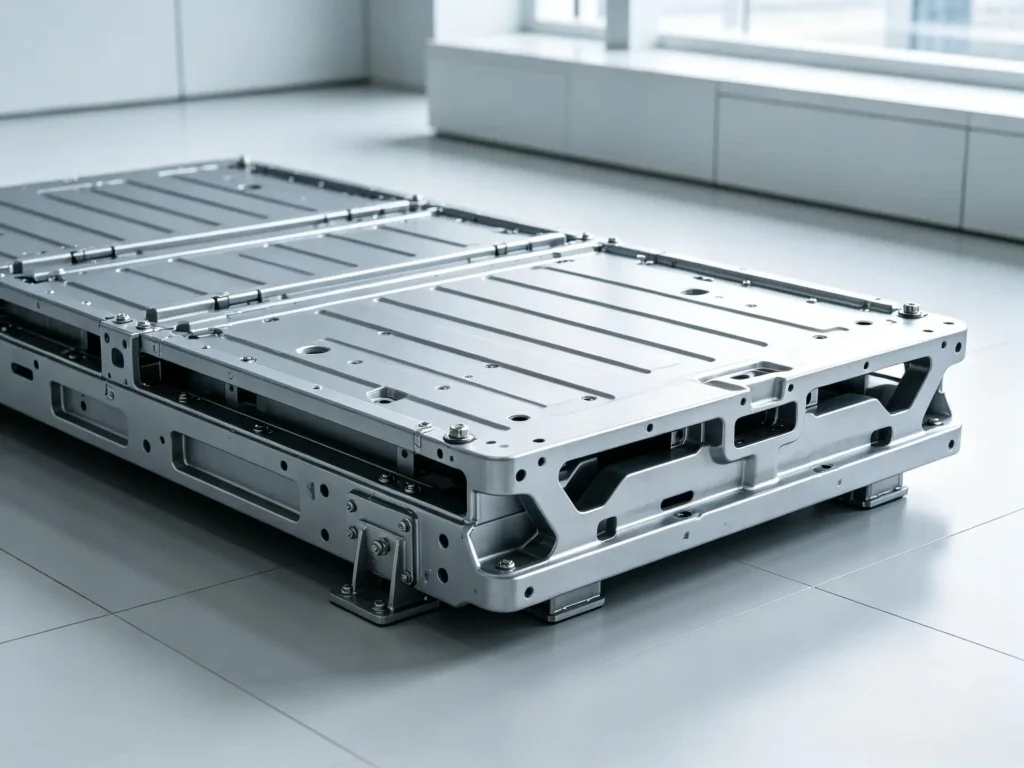

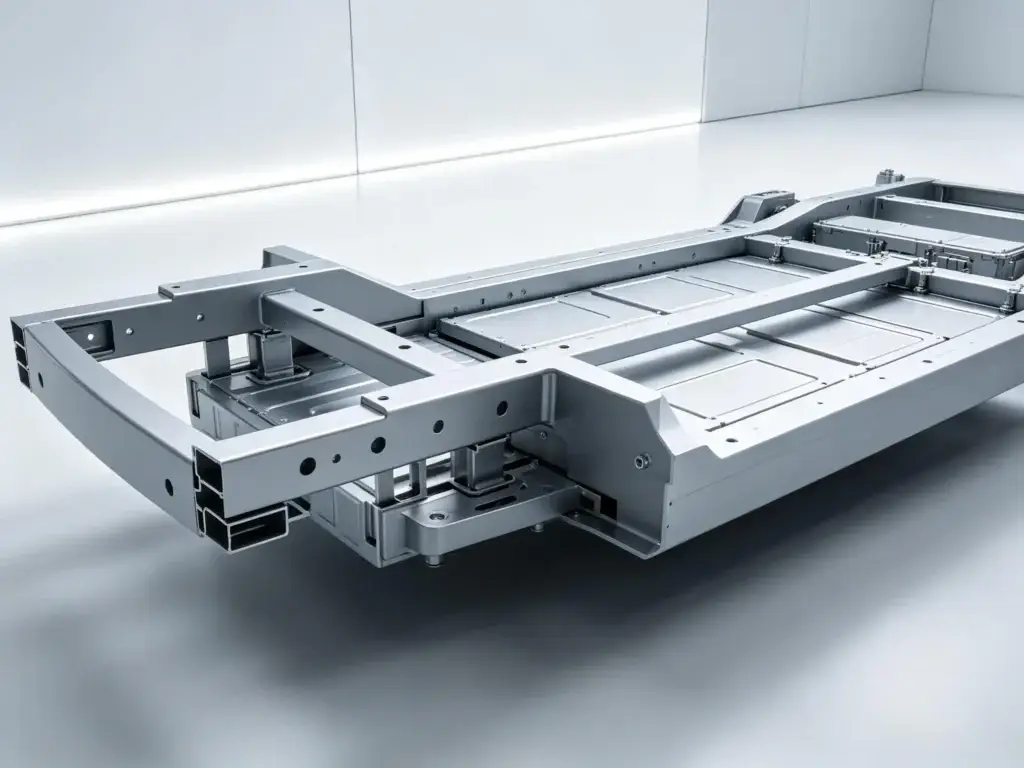

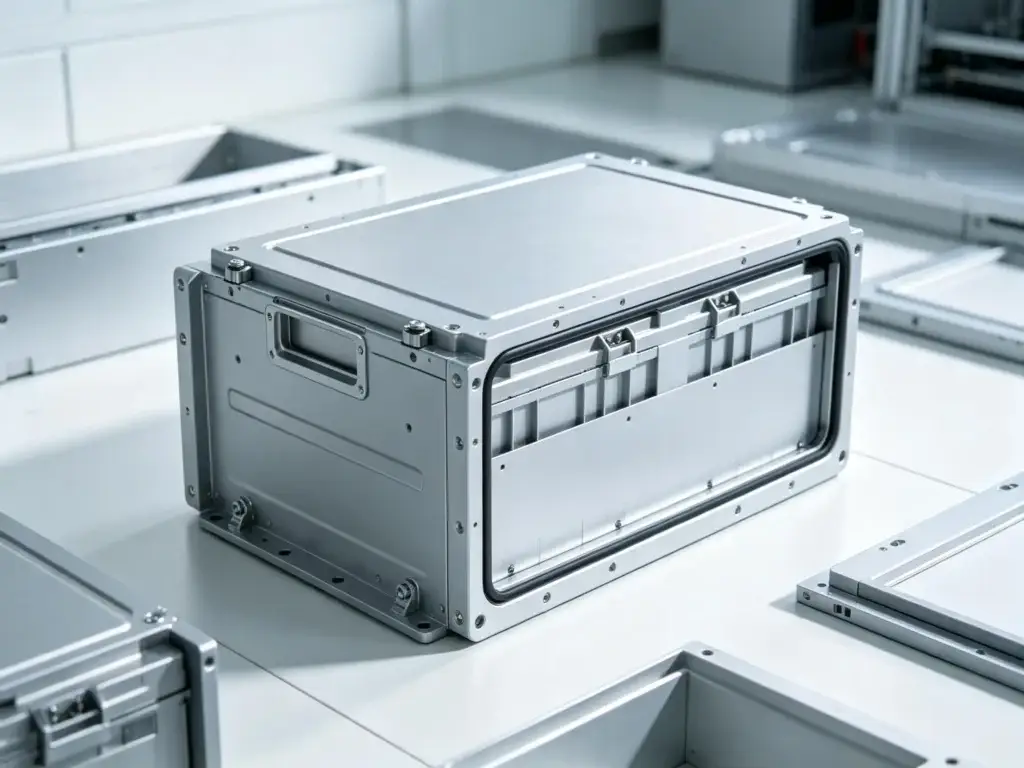

Battery tray profiles typically require hollow or semi-hollow extrusion dies, depending on the profile geometry. These dies are designed to produce lightweight yet high-strength aluminum sections for EV and energy storage applications.
The service life of a custom extrusion die depends on the alloy, profile complexity, and production volume. Under proper operating conditions, a high-quality die can typically produce tens of thousands to hundreds of thousands of extrusion cycles before refurbishment or replacement.
Precision extrusion dies can achieve profile tolerances in accordance with EN 755 or GB/T 14846 standards. Exact tolerances vary depending on profile dimensions, wall thickness, alloy, and extrusion process requirements.

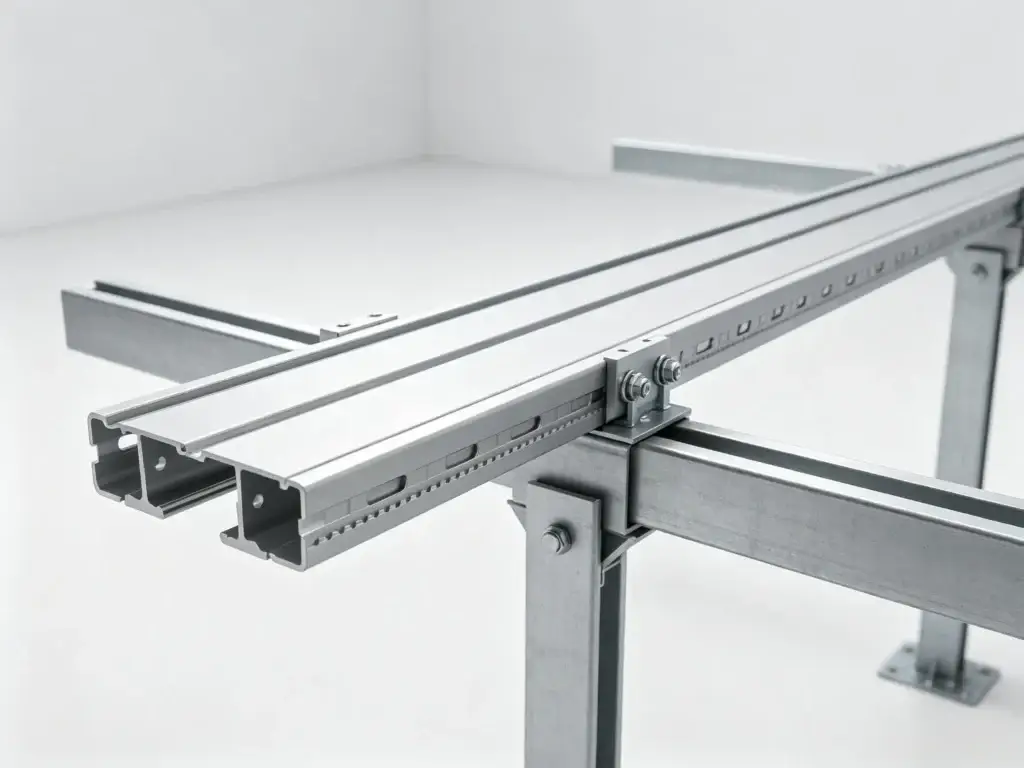

Yes. We manufacture extrusion dies for both standard and large-format solar frame profiles, including customized dies for utility-scale photovoltaic systems and oversized structural aluminum sections.
Yes. We provide complete OEM and ODM services, including profile design optimization, die engineering, flow simulation, prototype extrusion, testing, and mass production support.
Standard custom extrusion dies are typically completed within 10–20 working days, depending on profile complexity, die size, and project requirements. Expedited production is available for urgent orders.
Standard custom extrusion dies A well-designed extrusion die ensures balanced metal flow, accurate dimensions, smooth surface finish, and consistent wall thickness. This improves profile quality while reducing scrap rates, production downtime, and manufacturing costs.
Send us your requirements and our engineering team will provide a fast quotation and technical solution.
