Optimized Die Design for Smooth Metal Flow and High-Quality Profiles
Guide groove extrusion dies are designed with integrated grooves that direct and balance metal flow during extrusion. This improves profile consistency, reduces surface defects, and ensures uniform material distribution, making them ideal for high-precision or complex profiles.
Upload your profile drawing or provide your extrusion requirements. Our engineers will design a guide groove die for optimal metal flow and top-quality profiles.
Supports high-volume production with stable results
Explore answers to the most common questions about our precision aluminum extrusion dies. Get the technical information you need to support your industrial extrusion proje
Solid extrusion dies are suitable for bars, rods, rails, flat strips, heat sink bases, and various solid aluminum profiles.
Our dies can be designed for 1000, 3000, 5000, 6000, and 7000 series aluminum alloys.
Yes. We provide complete custom die design and manufacturing services based on drawings, samples, or profile specifications.
Lead time depends on profile complexity and quantity. Standard projects typically require 7–20 working days.
Yes. Trial extrusion and inspection services are available upon request.
Send us your requirements and our engineering team will provide a fast quotation and technical solution.
Rayven Company, founded in 2023, is the trading and service team of the Weilong mould manufacturing facility, which was established in Meishan in 2013.
With over 10 years of experience, we manage the entire production process in-house, from raw materials to finished products.

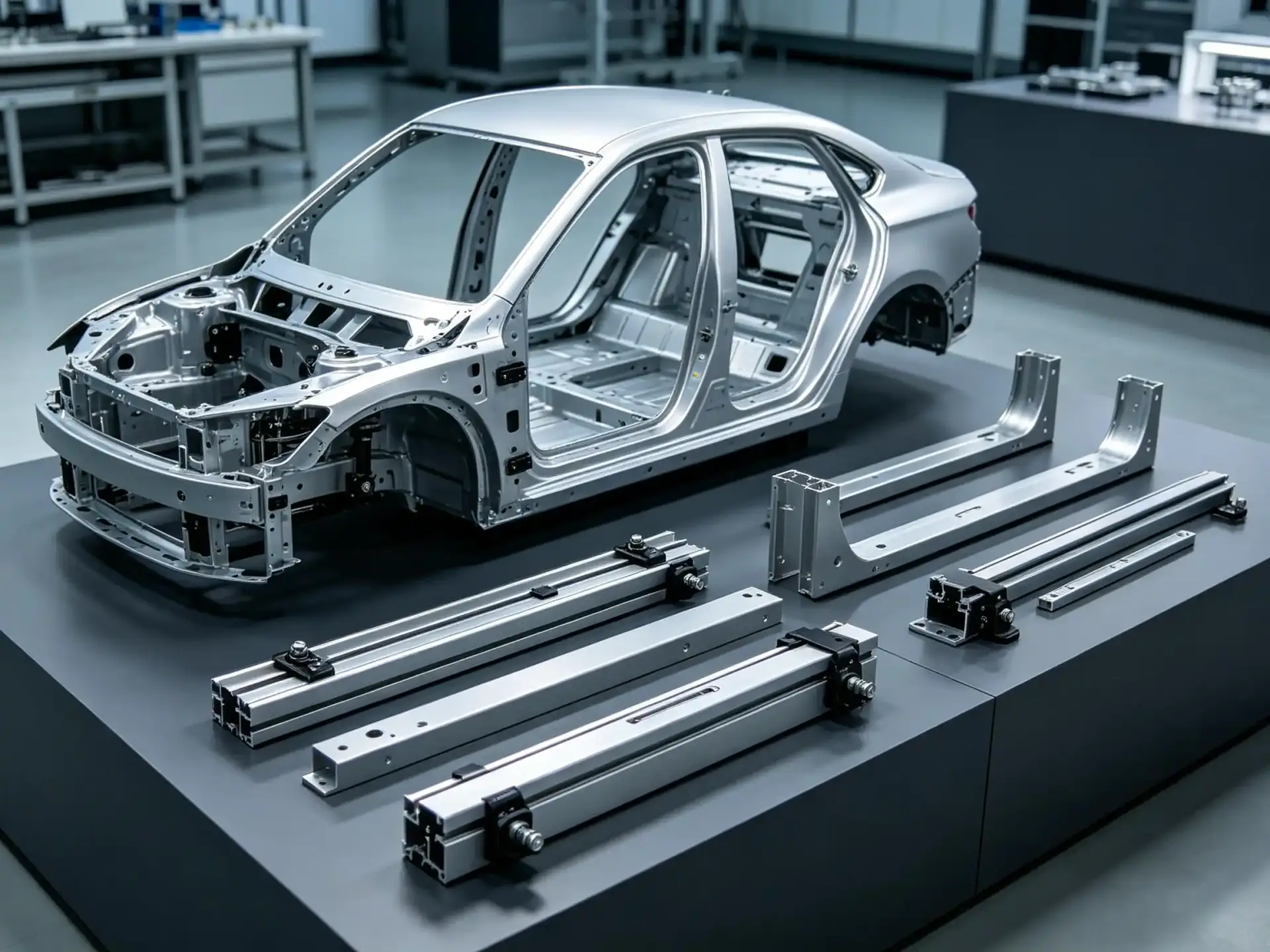

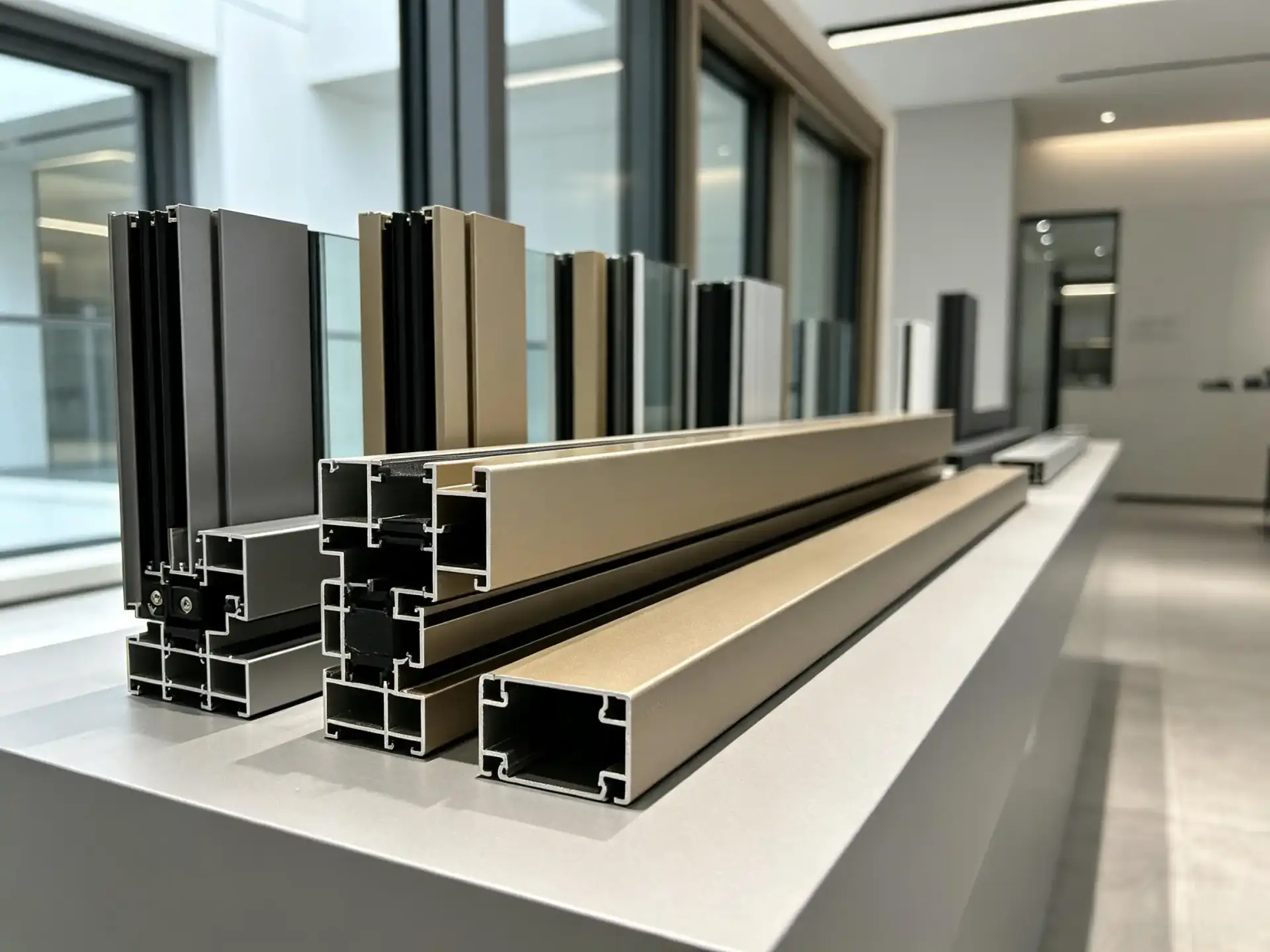

Our products serve a wide range of industries, including construction, manufacturing, and transportation.
