Flexible Multi-Part Die Systems for Efficient Maintenance and Cost-Effective Extrusion Production
Detachable or modular extrusion dies are designed with replaceable components that can be individually assembled, adjusted, repaired, or replaced. Compared with integral dies, modular die systems offer greater flexibility, reduced maintenance costs, and extended tooling service life, especially for complex or high-wear extrusion applications.
Share your profile drawing or extrusion requirements with our engineering team. We will recommend the most suitable modular die structure to improve productivity, reduce maintenance costs, and extend tooling life.
Explore answers to the most common questions about our precision aluminum extrusion dies. Get the technical information you need to support your industrial extrusion proje

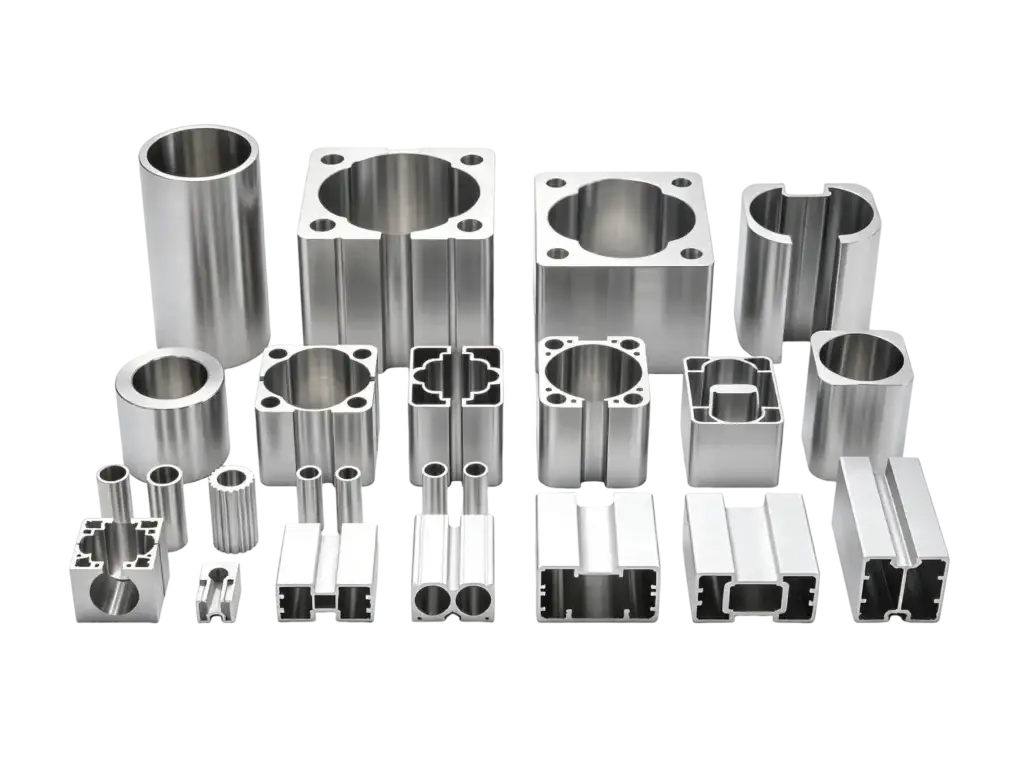

Semi-hollow dies include partial cavities with internal bridges, while hollow dies feature fully open cavities requiring more complex flow control.
Yes. Our engineers can design bridge-supported or multi-section semi-hollow dies according to your profile and performance requirements.
We support standard alloys such as 6060, 6061, 6063, 6005, 6082, and 7075, with custom alloy options available.
Through optimized bearing design, flow simulation, precision machining, and trial extrusion verification.
Depending on complexity, 10–25 working days from design approval to delivery.
Depending on complexity, 10–25 working days from design approval to delivery.
Send us your requirements and our engineering team will provide a fast quotation and technical solution.
